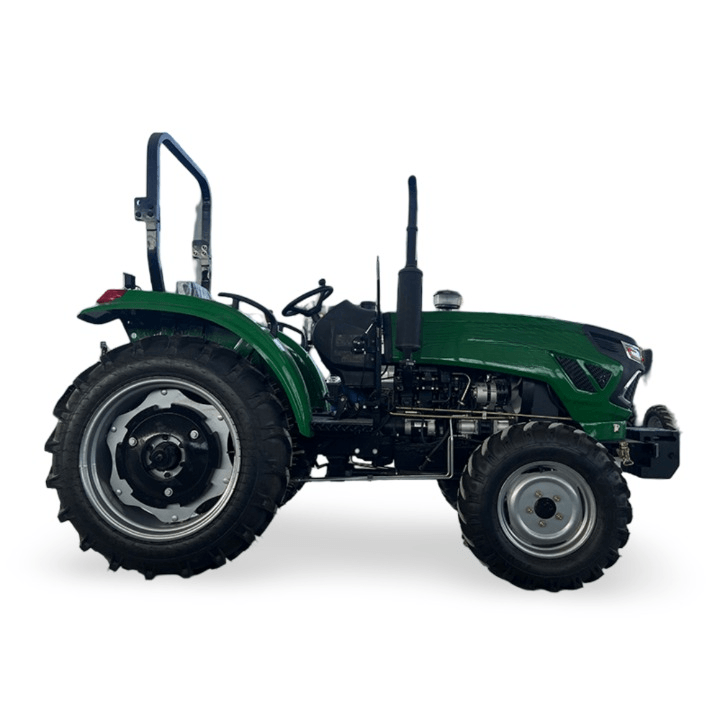

80HP 4WD Farm Tractor

80HP 4WD Farm Tractor

The 80HP 4WD Farm Tractor is a heavy-duty, high-performance agricultural machine built for power, durability, and versatile field operations. Equipped with a supercharged 495 engine, this 80-horsepower tractor delivers exceptional torque for demanding tasks such as ploughing, harrowing, towing, and rotary tilling.

Its switchable 4WD system enhances manoeuvrability and traction on challenging terrain, while the 8+8 shuttle shift gearbox ensures seamless forward and reverse transitions, improving work efficiency across multiple tasks. The hydraulic power-assisted steering and integrated operating platform offer operator comfort and control, even during long hours in the field.

Designed without a cabin, the open configuration allows for unobstructed visibility and faster entry and exit—ideal for orchard, vineyard, and tight-space operations. A liquid crystal instrument panel provides modern, precise readouts of all critical functions.

With a 60L side-mounted fuel tank, the tractor ensures extended operation with minimal downtime. The three-way multiport hydraulic output valve, strong lift and drop system, and 540–720 RPM rear PTO provide the flexibility to connect with various farm implements.

The frame is supported by a hot-rolled hydraulic cylinder, maintenance-free axles, and a suspended-type seat for shock absorption. Additional features like a differential lock, adjustable rear wheel track (0.96–1.4m), and high-quality wire harness ensure stable and efficient performance across a variety of field conditions.

Key Features:

• 80HP 495 supercharged engine
• 4WD switchable drive with differential lock
• 8+8 shuttle shift gearbox
• Hydraulic power steering system
• Liquid crystal dashboard and suspended seat
• Strong lifting and lowering system
• Three-way hydraulic multiport output
• Adjustable rear wheel track: 0.96–1.4m
• Rear PTO speed: 540–720 RPM
• 60L side fuel tank for extended operation

Specifications:

• • Model: JH804-2
  • Rated Power: 80HP
  • Drive Type: 4WD (switchable)
  • Engine: 495 Supercharged
  • Gearbox: 8+8 shuttle shift
  • Steering: Hydraulic power-assisted
  • Dashboard: Liquid crystal instrument panel
  • Seat: Suspended type
  • Front Axle: 030 (maintenance-free)
  • Rear Axle: TE
  • Rear PTO: 540–720 RPM
  • Fuel Tank: 60L (side-mounted)
  • Rear Wheel Track: 0.96–1.4m adjustable
  • Dimensions (L×W×H): 3.15 × 1.5 × 1.97m
  • Counterweight: 4 front / 2 rear
  • Battery: 120A maintenance-free
  • Hydraulic System: Hot-rolled hydraulic cylinder
  • Rear Tyres: 12.4-28
  • Front Tyres: 8.3-20
  • Vehicle Weight: 1.6T

Applications:

Ideal for medium to large-scale farming, orchard and vineyard cultivation, crop preparation, soil treatment, and multi-implement towing. Suitable for rough terrains where torque, traction, and consistent power output are essential.
